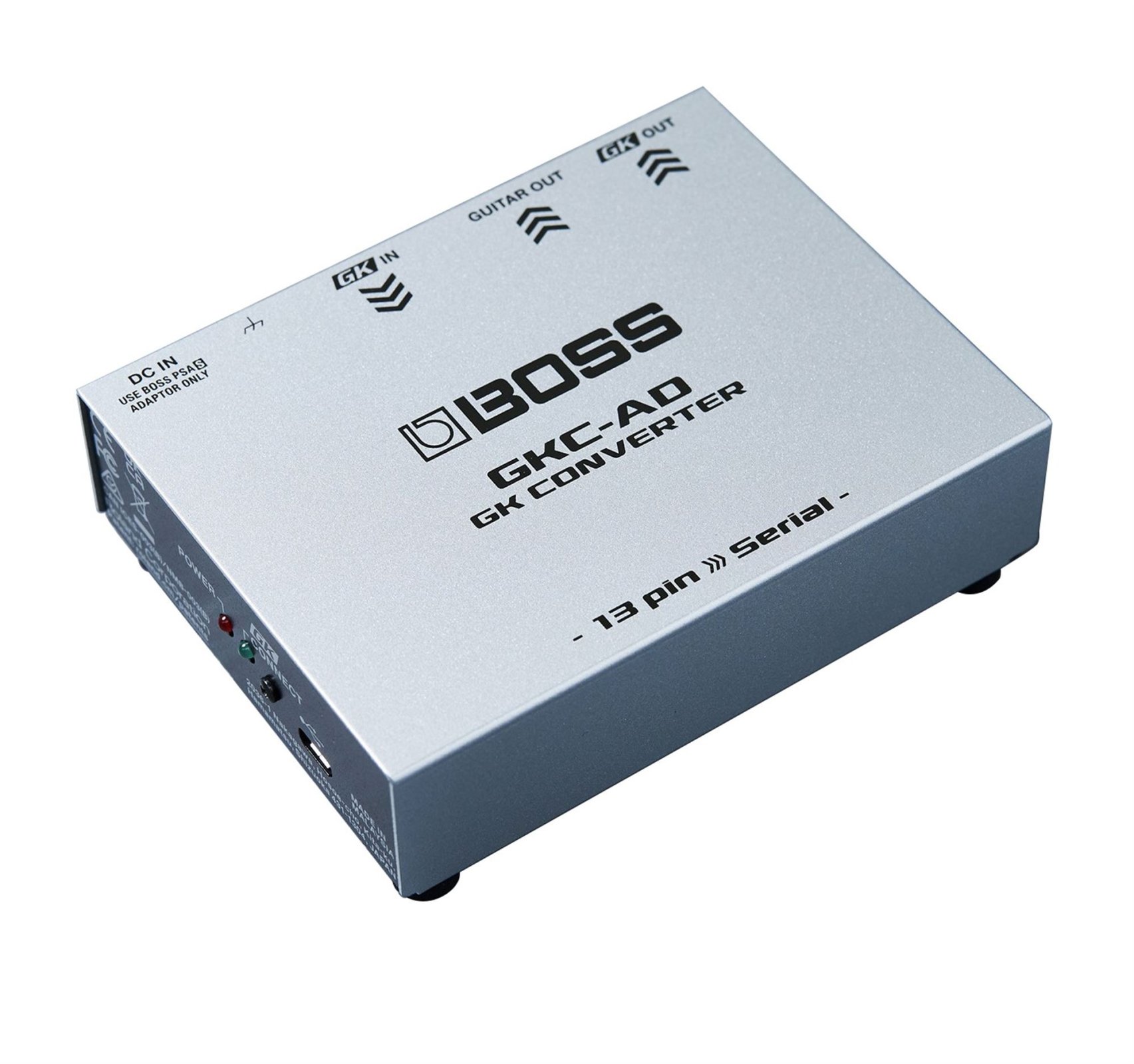

The latest BOSS guitar synthesizer products feature the Serial GK digital interface, a newly developed connection method that delivers evolved performance over the analog 13-pin GK interface used in earlier BOSS and Roland guitar synth and modeling products. The GKC-AD GK Converter allows you to drive the Serial GK input on the GM-800 Guitar Synthesizer from a Roland GK-3 or GK-3B Divided Pickup or an instrument equipped with a 13-pin GK output.

Features

• Converts analog 13-pin GK pickup systems to the newly developed Serial GK digital interface
• 13-pin GK input and Serial GK output
• Instrument output for passing normal guitar/bass pickup sounds embedded in the 13-pin connection
• Compact and rugged metal design

Supported Products

The GKC-AD enables you to use the GK-3/GK-3B Divided Pickup or an instrument equipped with a 13-pin GK output with the following products:

BOSS Products

• GM-800 Guitar Synthesizer

Specifications

Connectors

• GK IN connector: 13 pins DIN type
• GK OUT jack: 1/4-inch TRS phone type (for BGK cable only)
• GUITAR OUT jack: 1/4-inch phone type
• DC IN jack
• USB port: USB Micro-B (program update only)

Nominal Output Level

• GUITAR OUT: -10 dBu

Recommended Load Impedance

• GUITAR OUT: 10 k ohms or greater

Indicators

• POWER indicator
• GK CONNECT indicator

Current Draw

• 240 mA

Power Supply

• AC adaptor

Dimensions

• 115(W) x92 (D) x 36 (H) mm
• 4-17/32 (W) x 3-5/8 (D) x 1-7/16 (H) inches

Weight (excluding AC adaptor)

• 340 g
• 12 oz

Accessories

• AC adaptor
• Owner's Manual
• Leaflet "USING THE UNIT SAFELY"

* 0 dBu = 0.775 Vrmsv
